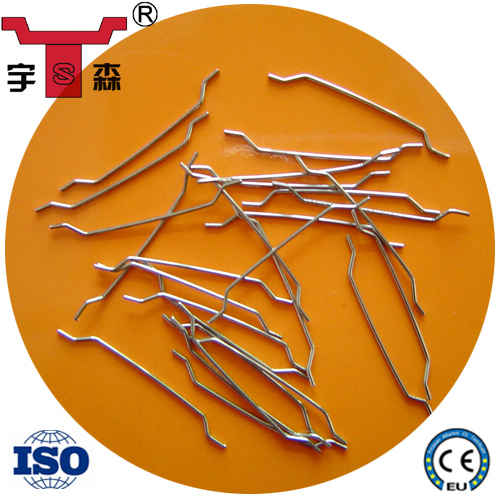

Hooked ends Steel Fiber use high-quality low-carbon steel wire, they are high-performance steel fiber, with the characteristics of the high tensile strength、good toughness,etc. has already been used for and wide on to many fields,such as road、bridge、airport runway、tunnel、culvert、hydro-power project、inner lining of underground construction、Port and pier、ocean project、nuclear test base rocket launch site、anti-earthquake building ect.The product is widely used and also for export products.Perform our country YB/T151-2017 "the concrete uses steel fibre " black metallurgy industry standard; the JG/T472-2015 steel fibre concrete building industry industry standard and ASTM A820 "Steel Fibres for Fibre-Reinforced Concrete".
Product characteristics：
1.high-quality
2. low-carbon
3.mixed with concrete
型号
model
长度
mm length
直径
mm diameter
长径比
draw ratio
抗拉强度
MPa tensile strength
每公斤根数
kilograms per cubic meter
CW-04-60/0.75
60
0.9
65
≥1000
3150
CW-04-60/0.75
60
0.75
80
≥1100
4500
CW-04-50/1.0
50
1.0
50
≥1000
3050
CW-04-45/0.75
45
0.75
60
≥1100
6000
CW-04-35/0.75
35
0.75
45
≥1100
7700
CW-04-30/0.60
30
0.60
50
≥1100
13600
CW-04-35/0.55
35
0.55
63
≥1200
14100
CW-04-30/0.55
30
0.55
55
≥1200
16200
CW-04-30/0.55
30
0.5
60
≥1000
19600
CW-04-25/0.50
25
0.5
50
≥1000
23100
